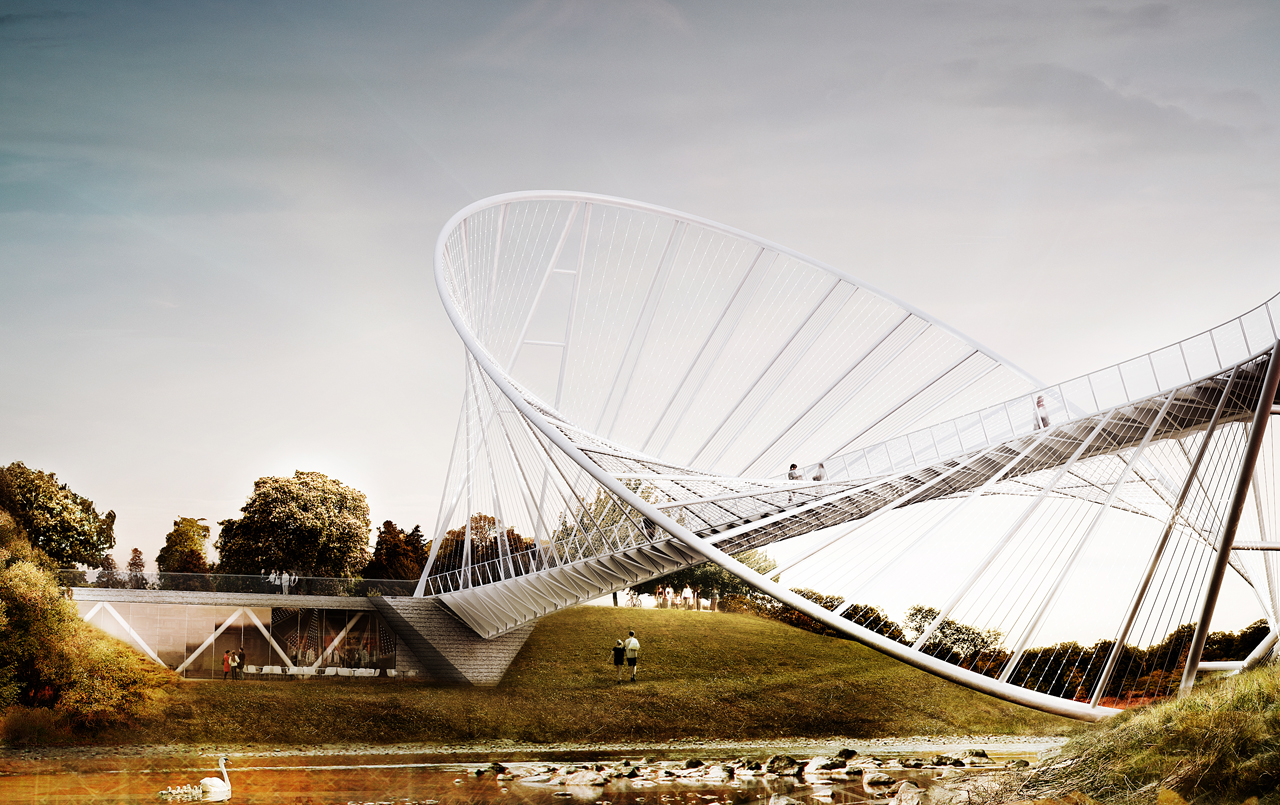

The proposal for the Meadows Salford Bridge Competition of Alex Daxböck and Chris Precht of pendareinterprets a traditional bridge typology by mixing it with a strong, visual landmark. Looking at the bridge from the side, the strucutre appears as a common suspended bridge, but getting closer to its starting points, the bridge opens up its eliptical shape and surrounds the pedestrians walking over to the Meadows.
THE `O´ – A MULTIFACETED OBJECT 一个多方面的对象 The aim of the proposal is to create a landmark for the Salford Meadows by turning its structure of the bridge into a formal element, which will define a strong signature for the site. The design is meant to stand as a monument by balancing the tradition of Salford with the green spaces on the Meadow in an elegant, harmonious and inviting way.
LANDMARK 里程碑 A landmark not defined how people are interacting with the building, but how the building is interacting with the people. Therefore we created an icon for the Meadows which changes its appearance to people throughout the city. People in the South and North of Salford see the bridge as a disc-like object, where else for people in the eastern and western parts the bridge has a very slim and elegant appearance. Approaching from the Crescent / Chapel Street, the bridge looks like a common swing bridge suspended from a pylon. Getting closer, the bridge is opening up and the ellipses turns into a full circle inviting the visitors to the Meadow. People are interacting with the bridge without even the need of crossing it and therefore the O creates a unique experience for people living and visiting Salford and a lasting formal impression of the Meadows.

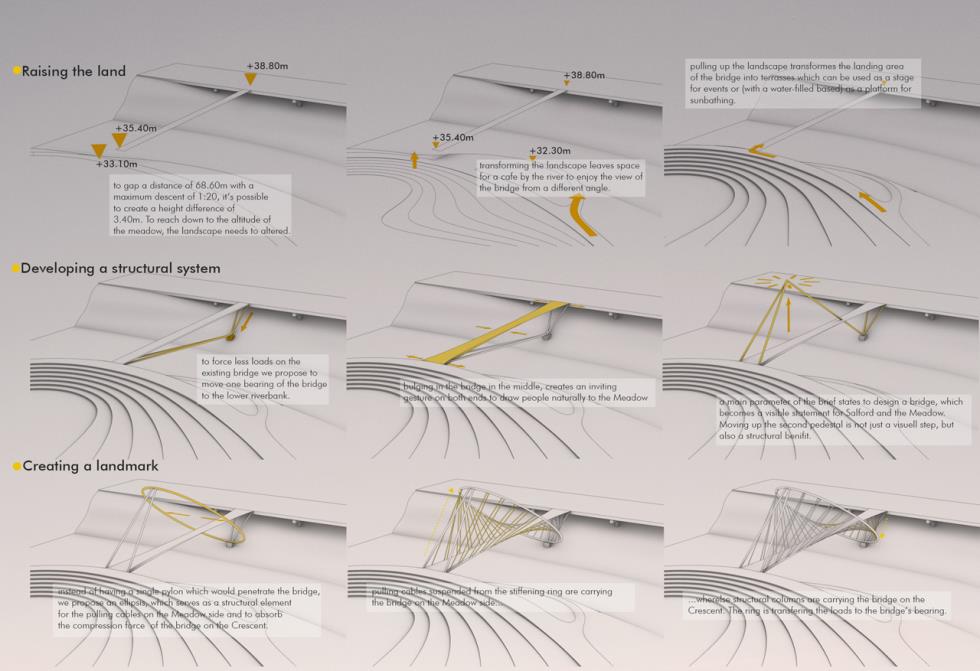

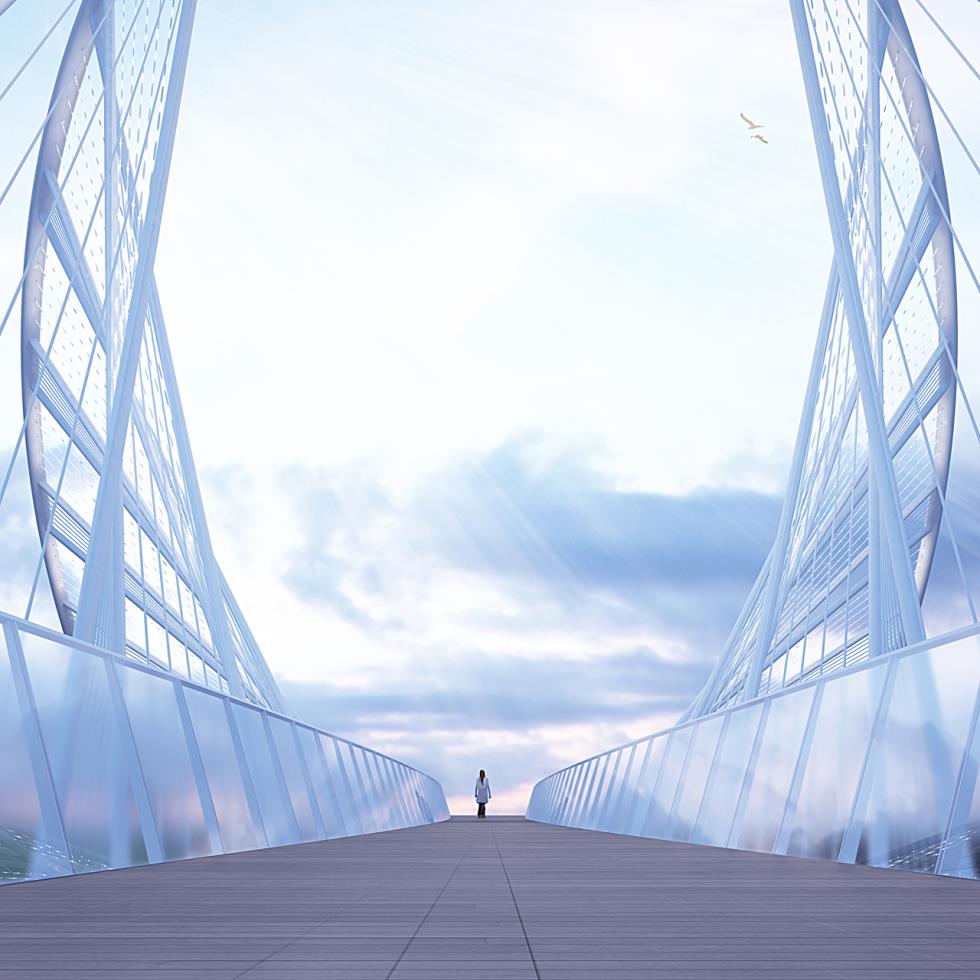

THE WALKWAY 人行道 A continuously truss system is carrying a wooden finishing for a walk path and glazed, semi transparent handrails. With it‘s DDA compliant gradient of 1/20, both endings are generously widened to invite pedestrians. The walkway merges into a a terraced landscape, which can be used for sunbathing during the day and as an open air theatre at dawn. Hence its slope, the landing point of the bridge provides a great view over the Meadows.
The O – cafe was integrated into the sliced landscape with direct view to the Irwell River and the O.
O - 咖啡馆融入了切片景观，直接看到Irwell河和O.
THE STEEL RING 钢圈 A profiled welded steel tube, resting on 2 concrete bearings is the main structural element of the bridge. It supports and carries the structure at the same time. Carrying the loads of the bridge to the bearings, the ellipse enables the bridge to span over the Irwell River without having supporting columns within the water. To avoid forcing to many loads to the existing bridge (Chapel Street), one bearing should move to the landscape underneath the street.

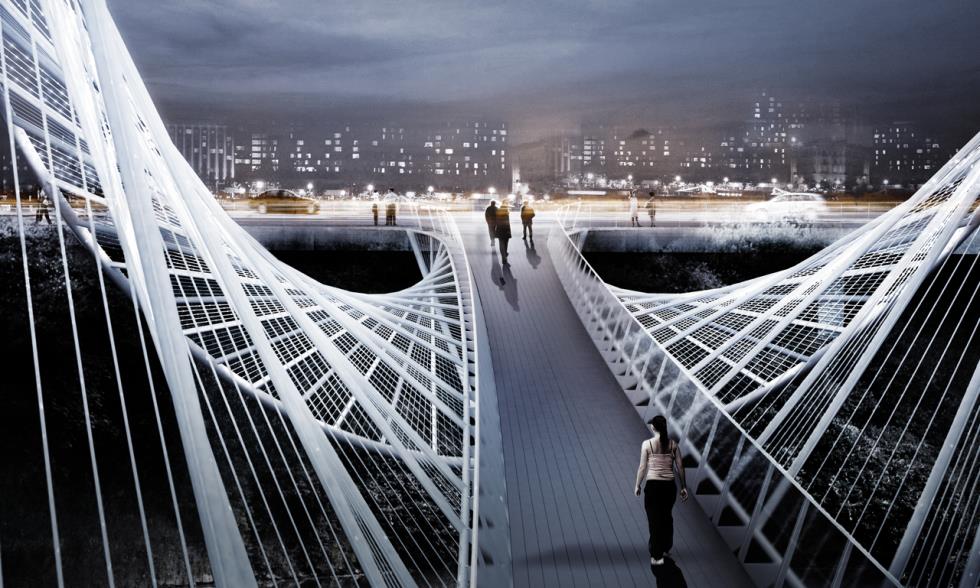

THE STEEL ROPES 钢绳 During the day, the suspension cables are reflecting the sunlight and the sun’s energy get stored in energy saving LED’s. Therefore the bridge will be glowing during the night transforming the O into a landmark for Salford 24/7.
